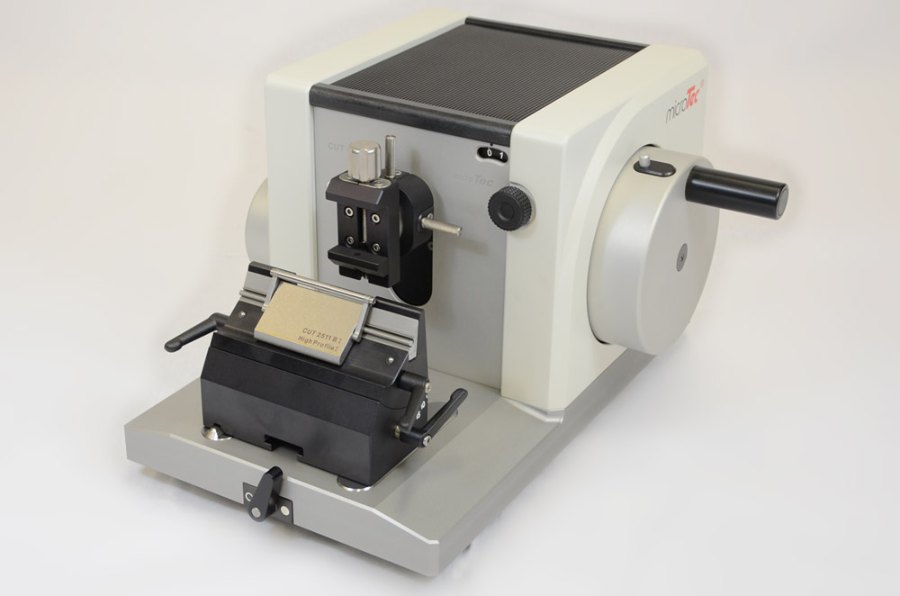

microTec Rotary Microtome CUT 4050
Manually operated rotary microtome CUT4050 (basic unit) for paraffin and hard-material sectioning — Made in Germany.
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
Manually operated rotary microtome CUT4050 (basic unit) for paraffin and hard-material sectioning — Made in Germany.
The microTec rotary microtome is a manually operated cutting device for all types of work with paraffin and hard cutting technology in biology, medicine and industry — used to prepare microscopic sections (e.g. human tissue) in histology and pathology, as well as for analysis of synthetic materials. Cutting is done with a resharpenable knife or a disposable blade fixed in interchangeable knife holders.
Features
- Micrometer and coarse mode system enclosed in a housing
- Coarse mode on the left, next to safety clutch
- Fine setting with collision guard
- Optimal object guiding by backlash-free and maintenance-free cross-roller guides
- Cutting thickness setting from 0.5 µm to 60 µm in defined steps
- Precise clamping for knife carrier with optimal shifting options
- Security lock on hand dial
Specifications
| Parameter | Value |
|---|---|
| Section thickness | 0.5 – 60 µm in defined steps |
| Vertical stroke | 70 mm |
| Horizontal stroke | 40 mm |
| Operation | Manual (hand dial) |
| Coarse mode | Hand dial on the left (4050F: front side; 4050R: hand dial turning left) |
Ordering Codes
| Art. No. | Model | Description |
|---|---|---|
| B150012 | CUT4050 | Basic unit, coarse mode on the left |
| — | CUT4050F | Same as CUT4050 with coarse mode on front side |
| — | CUT4050R | Same as CUT4050 with coarse-mode hand dial turning left |
Suggested Equipment
Configuration No. 1
| Qty | Item | Art. No. |
|---|---|---|
| 1 | Rotary Microtome CUT4050 | B150012 |
| 1 | Knife holder basic unit | B150043 |
| 1 | Disposable blade holder 2511A | B150046 |
| 1 | Clamping plate 2511A low profile I | F150079 |
| 1 | Adapter rigid | F150086 |
| 1 | Standard object clamp | B150053 |
| 1 | Universal cassette clamp (optional) | B150063 |
Configuration No. 2
| Qty | Item | Art. No. |
|---|---|---|
| 1 | Rotary Microtome CUT4050 | B150012 |
| 1 | Knife holder basic unit | B150043 |
| 1 | Standard knife holder "R" | B150044 |
| 1 | Knife holder "RS" (optional) | B150047 |
| 1 | Adapter rigid | F150086 |
| 1 | Tungsten Carbide knife "D" | H150051 |
| 1 | Adapter orientable (optional) | B150065 |
Manufacturer: microTec Laborgeräte GmbH, Walldorf, Germany — Made in Germany. Source: micro-tec.de
المواصفات microTec Rotary Microtome CUT 4050
| Manufacturer | microTec |
