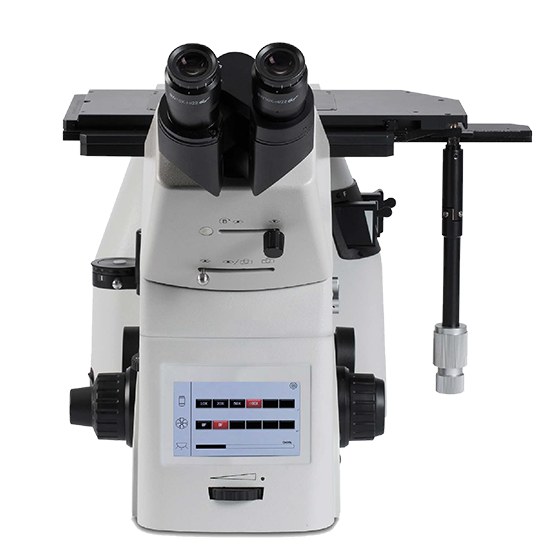

BestScope BS-6045B Research Inverted Metallurgical Microscope
IntroductionThe BS-6045 series research inverted metallographic microscope can place samples above the objectives and observe them from below, and is widely used in industries such as steel, automotive, machinery and electronics. In cases where the sample is uneven or has a large volume, placing the sample on a platform can facilitate and facilitate quick observation. BS-6045 can be used for large and heavy samples weighing less than 30kg,…
Model: BS-6045B | Magnification: 50×-1000× | Eyepiece: SW10×/22mm | Objective: 5×,10×,20×,50×,100× | Nosepiece: Coded sextuple | Reflected Illumination: 5W LED lamp | Viewing Head: Trinocular | Focusing: Coaxial Coarse
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BS-6045B Research Inverted Metallurgical Microscope
IntroductionThe BS-6045 series research inverted metallographic microscope can place samples above the objectives and observe them from below, and is widely used in industries such as steel, automotive, machinery and electronics. In cases where the sample is uneven or has a large volume, placing the sample on a platform can facilitate and facilitate quick observation. BS-6045 can be used for large and heavy samples weighing less than 30kg, suitable for magnification observation ranging from tens to thousands of times. BS-6045 is for bright field, dark field, polarizing and DIC observation.
Key Details
| Model | BS-6045B |
| Magnification | 50×-1000× |
| Eyepiece | SW10×/22mm |
| Objective | 5×,10×,20×,50×,100× |
| Nosepiece | Coded sextuple |
| Reflected Illumination | 5W LED lamp |
| Viewing Head | Trinocular |
| Focusing | Coaxial Coarse |
Features
1.Mechanical Stage
Three-layer mechanical stage, maximum load capacity: 30kg. The spacious workspace is suitable for placing large and heavy samples. The surface of the stage is scratch resistant and suitable for observing materials of various materials and shapes. At the same time, there are various stage pallets and holders, meeting the observation and analysis of various small-sized samples. The flexible low position handle ensures the accuracy and comfort of sample movement.
2.Metallurgical specialized objectives
With carefully selected high-transparent glass and advanced coating technology, precise color reproduction is ensured. For various detection needs, there are multiple objectives to choose from, including high-resolution, polarized light, and ultra long working distance objectives.
3.Multi optical ports
Optical ports are installed at the microscope head and on both sides for connecting cameras and various application extension accessories. By means of a light splitting lever, the splitting ratio of different optical paths can be achieved, making conversion quick and convenient. Optional C-mount adapters of 0.5X, 0.7X and 1X are available to meet different imaging needs.
4.Intermediate magnification switching
With built-in turret magnification changeover structure, quick switching between 1x and 1.5x can be achieved, making the sample details clearer and the results more reliable.
5.Kohler illumination
Koehler illumination is known as the perfect illumination system for microscopes, which provides perfect brightness and uniform field of view while making it possible to expand the functions of microscopes.
6.Multi adjusting sliders
Field diaphragm and iris aperture can be used to adjust the field of view and the clarity of imaging, as well as to some extent adjust aberrations. The aperture and filters can easily adjust the brightness or color of light. The analyzer slider can adjust polarizing observation and DIC imaging. Multiple sliders are used in combination to ensure high-quality imaging.
7.Six-positionobservation module turret
It adopts a six-position turntable structure. The turret can be easily taken out from the microscope body and convenient to place different observation modules. When in use, just turn the dial to change in observation mode, with accurate positioning and convenient use.
8.Low position knob
The knob of coaxial focusing system, the stage moving handle and brightness adjustment are designed with a low position, allowing users to operate the microscope in the most comfortable posture of putting hand on the table.
9.45°inclined viewing head
Whether sitting or standing, the users can observe in a natural posture to reduce fatigue. Meanwhile, the interpupillary distance of the viewing head and the diopter of the eyepieces can be adjusted, meeting the usage habits of different users.
10.Microscope status display
There is an LCD screen on BS-6045B showing the microscope status:
- Magnification of objectives
- Observation mode on module turret
- Brightness display and memory
- Touch to adjust brightness
- Display settings
11.Brightness memory function
BS-6045B can remember the illumination brightness of using each objective and automatically adjust the light intensity to the corresponding brightness of each objective when different objectives are converted to each other, reducing visual fatigue and improving work efficiency.
4X
20X
50X
100X
12.Touchscreen, achieving fully motorized control
There is a touch screen at the front of BS-6045C, which can achieve almost all microscope operations, including motorized focusing, stage movement, objectives selection, intermediate magnification conversion, side optical ports selection, aperture adjustment, multifunctional turntable conversion and other functions. The control handle is integrated on the right side of the body, greatly saving desktop space.
Microscope status display
Magnification switching
Stage control
Motorized nosepiece
Motorized stage
Controller
Motorized focusing
Application
Today, with the continuous deepening of materials science research, a single observation mode can no longer meet the increasingly complex needs of scientific research and testing. BS-6045 can meet various observation needs. Whether it is basic bright field, polarizing or complex DIC observation, clear, realistic and complete images can be obtained.
Observation method | Bright field | Dark field | DIC | Polarizing |
BS-6045 | ● | ● | ● | ● |
Microchip, Reflection, Bright field
Bronze Powder, Reflection, Polarizing
Carburized Metal, Reflection, Bright field
Alloy, Reflection, Polarizing
Crystal, Reflection, Dark field
Integrated Circuit, Reflection, DIC
Specification
Item | Specification | BS-6045A | BS-6045B | BS-6045C | |
Optical System | Infinity Color Correction Optical System | ● | ● | ● | |
Viewing Head | 45° inclined, gemel trinocular head, interpupillary distance: 47-78mm, with Bourbon lens. 3 position beam split ratio: 50/50, 100/0, 0/100. | ● | ● | ● | |
Eyepiece | Super wide field plan eyepiece SW10×/22mm, diopter adjustable | ● | ● | ● | |
Super wide field plan eyepiece SW10×/25mm, diopter adjustable | ○ | ○ | ○ | ||
Wide field plan eyepiece WF15×/16mm, diopter adjustable | ○ | ○ | ○ | ||
Wide field plan eyepiece WF20×/12mm, diopter adjustable | ○ | ○ | ○ | ||
Eyepiece EW12.5×/17.5mm | ○ | ○ | ○ | ||
Objectives | NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) | 5×/NA=0.15, WD=20mm | ● | ● | ● |
10×/NA=0.3, WD=11mm | ● | ● | ● | ||
20×/NA=0.45, WD=3.0mm | ● | ● | ● | ||
NIS45 Infinite LWD Plan APO Objective (BF & DF) | 50×/NA=0.8, WD=1.0mm | ● | ● | ● | |
100×/NA=0.9, WD=1.0mm | ● | ● | ● | ||
Nosepiece | Sextuple nosepiece with DIC slot | ● | |||
Coded sextuple nosepiece with DIC slot | ● | ||||
Motorized sextuple nosepiece with DIC slot | ● | ||||
Stage & Accessories | Three-layer mechanical stage, stage size: 340mm*230mm, moving range 130mm*85mm, flexible knob. Different small stages could be attached to main stage. | ● | ● | ||
Motorized stage, stage size: 390mm*230mm, moving range 115mm*75mm, maximum speed 71mm/s, precision 0.1μm. Bidirectional repeatability accuracy ≤5μm, unidirectional repeatability accuracy ≤1μm | ● | ||||
Ф20 field aperture | ● | ● | ○ | ||
Ф28 field aperture | ● | ● | ○ | ||
Drop-shaped field aperture | ● | ● | ○ | ||
Universal holder | ○ | ○ | ● | ||
Culture dish holder | ○ | ○ | ○ | ||
Slice holder | ○ | ○ | ○ | ||
96 well dish | ○ | ○ | ○ | ||
Focusing System | Low-position coaxial coarse and fine focusing, fine division 2μm, Moving range 9mm | ● | ● | ||
Motorized focusing system | ● | ||||
Internal magnification | 1×, 1.5× | ● | ● | ● | |
Polarizing Kit | Polarizer for reflected illumination | ● | ● | ● | |
Analyzer for reflected illumination, 360° rotatable | ● | ● | ● | ||
DIC Kit | DIC 5×-20× (can be used for 5×, 10×, 20× objectives) | ○ | ○ | ○ | |
DIC 50×-100× (can be used for 50×, 100× objectives) | ○ | ○ | ○ | ||
Reflected Illumination | Reflected illumination, 12V/100W halogen lamp, Koehler illumination, with 6-position turret | ● | |||
Reflected illumination, 5W LED lamp, Koehler illumination, with 6-position coded turret | ● | ||||
Reflected illumination, 5W LED lamp, Koehler illumination, with 6-position motorized turret | ● | ||||
BF1 bright field module (has function of reducing the light intensity and anti-glare) | ○ | ○ | ○ | ||
BF2 bright field module | ● | ● | ● | ||
DF dark field module | ● | ● | ● | ||
Color correction yellow, green filter, built-in blue filter | ● | ● | ● | ||
Built-in ND6, ND25 filter and color correction filter | ○ | ○ | ○ | ||
Four-band fluorescent module | ○ | ○ | ○ | ||
100W HBO Lamp | ○ | ||||
Image Output | Output changeable (Left side / Right side / Eyepiece tube) Splitting ratio: Left / Eyepiece =100/0; Right / Eyepiece =80/20; Left(or Right) / Eyepiece =0/100 | ● | ● | ● | |
LCD Screen | Touch screen, microscope status display | ● | |||
Touch screen, for controlling and showing microscope status | ● | ||||
C-mount Adapter | 0.5× C-mount adapter | ○ | ○ | ○ | |
0.7× C-mount adapter | ○ | ○ | ○ | ||
1× C-mount adapter | ● | ● | ● | ||
Other Accessories | Dust cover | ● | ● | ● | |
Power cord | ● | ● | ● | ||
Calibration slide 0.01mm | ○ | ○ | ○ | ||
Specimen presser | ○ | ○ | ○ | ||
Package | Paper box with pearl cotton (single unit packaging) | ● | ● | ● | |
Note: ● Standard Outfit, ○ Optional
Dimension
BS-6045A
BS-6045B
BS-6045C
Unit:mm
Specifications for BestScope BS-6045B Research Inverted Metallurgical Microscope
| Manufacturer | BestScope |
