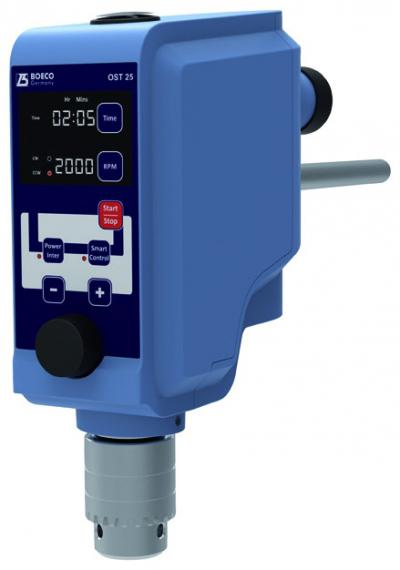

BOECO Overhead Stirrers OST-25 / OST-40
BOECO Overhead Stirrers OST-25 / OST-40 With digital display
Compact size
Brushless DC maintenance free long life motor
The speed will remain constant even with changing viscosities
Suitable for viscosities 10.000 and 30.000 mPas and volumes (25/40l)
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Technical details
| Technical details | OST-25 | OST-40 |
|---|---|---|
| Stirring quantity (H2O): | 25 l | 40 l |
| Max. viscosity: | 10.000 mPas | 30.000 mPas |
| Motor rating input/ouput: | 59 W / 45 W | 59 W / 45 W |
| Output at stirring shaft: | 42 W | 42 W |
| Max. ON-time | 100% | 100% |
| Max. torque at chuck (100 rpm) | 20 Ncm | 40 Ncm |
| Speed range | 50 - 2.000 rpm | 50 - 1.000 rpm |
| Speed display: | digital (LED) | digital (LED) |
| Speed control: | stepless | stepless |
| Setting accuracy speed: | ± 1 rpm | ± 1 rpm |
| Reversible direction of rotation: | yes | yes |
| Power intermittent operation | yes, (resumes from last run) | yes, (resumes from last run) |
| Chuck range: | 0,7 - 10 mm | 0,7 - 10 mm |
| Extension arm diameter: | 13 mm | 13 mm |
| Length of extension arm: | 160 nm | 160 nm |
| Timer (LED): | Yes | Yes |
| Timer setting range: | 1 min - 99 hr 59 min & continuous. | 1 min - 99 hr 59 min & continuous. |
| Protection class: | IP 54 (acc. to DIN EN 60529) | IP 54 (acc. to DIN EN 60529) |
| Protection: | Overload, overcurrent, overtemperature | Overload, overcurrent, overtemperature |
| Voltage: | 100-240 V | 100-240 V |
| Frequency | 50/60 Hz | 50/60 Hz |
| DC voltage: | 24 V | 24 V |
| Housing material | Thermoplastic polymer | Thermoplastic polymer |
| Dimensions in (WxHxD): | 79 x 173 x 176 mm | 79 x 173 x 176 mm |
| Net weight: | approx. 1,4 kg | approx. 1,4 kg |
Ordering information
| Code | Description |
|---|---|
| BOE 8901170 | BOECO overhead stirrer OST-25, 100-240V, 50/60 Hz, package, incl. plate stand, boss head clamp, and 4-bladed propeller stirrer |
| BOE 8901180 | BOECO overhead stirrer OST-40, 100-240V, 50/60 Hz, package, incl. plate stand, boss head clamp, and 4-bladed propeller stirrer |
Source: BOECO Germany – https://www.boeco.com/boeco-overhead-stirrers-ost-25-ost-40&sk=300
