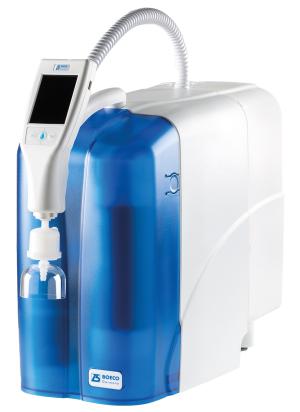

BOECO Water Purification System BOECOpure PLUS xstouch UV-TOC/UF
LABORATORY WATER PURIFICATION
SYSTEM BOECOpure PLUS xstouch UV-TOC/UF The all-rounder for H2O pure type ASTM I + ASTM II
The BOECOpure PLUS xstouch is an extremly compact system to produce ultrapure water fulfilling highest demands of analytical and life sciences laboratories and can be directly connected to the drinking water supply.
Scroll and swipe to the next function with the intuiitive Optifilltouch display and integrated monitoring unit. Adjustable limit values for conductivity and TOC, as well as data output via USB increase process reliability under considerati- on of highest sustainability.
Save valuable space in your lab. Configure and place the production unit under the bench and position your Optifilltouch dispenser and monitoring unit practical on a bench or space-saving on a wall.
Retractable and pivotable with a flexible connection for the most comfortable supply of ultrapure water to any vessel.
Features:
» Reliable ASTM I + II water quality supply
» Optifilltouch dispenser as standard:
» enables one handed dispenser operation
» Colour-touch-display with intuitive menu navigation
» is detachable and ergonomically shaped
» can be turned by 170 degrees/80 cm in diameter and is height adjustable
» Simple and economical filter replacement
» Real time TOC monitoring
» Residual cartridge volume display
» USB-Port for data in- and output
» Leak detector is included as a standard
» Supply including all mandatory filters and consumables for start-up and operation
The BOECOpure PLUS XStouch UV-TOC/UF is supplemented with UV-oxidation, 185/254 nm.
ASTM Type I Ultrapure water applicable for
Life science and microbiology and cell culture media
ASTM Type II pure water applicable for
Rinsing laboratory glassware, preparing and diluting buffers, reagents, tissue culture media and dyes.
Sample preparation for analytical methods such as flame AAS
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specification BOECOpure PLUS – xstouch UV-TOC/UF
| ASTM II | |
| Pure water performance at 15 °C (l/h): | 8 |
| Conductivity at 25 °C (µS/cm): | 0.067-0.1 |
| Resistance at 25 °C (MΩ x cm): | 15 up to 10 |
| ASTM I | |
| Conductivity at 25 °C (µS/cm): | 0.055 |
| Resistance at 25 °C (MΩ x cm): | 18.2 |
| TOC Value* (ppb): | < 5 |
| Dispensing performance (l/min): | up to 2 |
| Bacterial ** content (KBE/ml): | < 0,01 |
| Particles ** content < 0.2 µ (1/ml): | < 1 |
| Pyrogens (Endotoxins) *** (EU/ml): | < 0.001 |
| RNase *** (pg/ml) | < 1 |
| DNase *** (pg/ml) | < 5 |
| Proteases *** (µg/ml) | < 0.15 |
Feedwater requirements
| Feedwater temperature (°C): | +2 up to +35 |
| Feedwater pressure (bar): | 0.5 up to 6 |
| Conductivity at 25 °C (µS/cm): | < 2000 |
| Colloid index SDI: | < 10 |
| Free chlorine (ppm): | < 3 |
| TOC-Value (ppm): | < 1 |
| Hardness [as CaCO3]*: | < 300 |
| pH range: | 4 up to 10 |
Installation data
| Electrical connection (Volt/Hz): | 90-240 / 50-60 |
| Total connected load (W): | 120 |
| Port size - tap water: | R 3/4 - female |
| Ambient temperature (°C): | +2 up to +35 |
| Dimensions* (W x D x H mm): | 253 x 530 x 520 |
| Weight dry (kg): | 19 |
Ordering information
| Code | Description |
|---|---|
| BOE 8211085 | BOECOpure PLUS xstouch UV-TOC/UF — Typical application: Life science and microbiology |
Accessories / Consumables
| Code | Description |
|---|---|
| BOE 19200008 | RO cartridge BOECOpure Plus xs |
| BOE 19200103 | Ultrapure water cartridge BOECOpure Plus xs 055 |
| BOE 19100300 | Sterile filter capsule 0,2 µm |
| BOE 19102100 | Bio filter capsule |
| BOE 19200305 | Wall mounting BOECOpure PLUS xs |
| BOE 19200091 | Disinfection unit BOECOpure PLUS xs |
| BOE 19200057 | Disinfectant BOECOpure PLUS |
| BOE 16531110 | Filter housing 10“ without Pre-filter |
| BOE 16511100 | Pre-filter insert 1 µm, 10“ |
