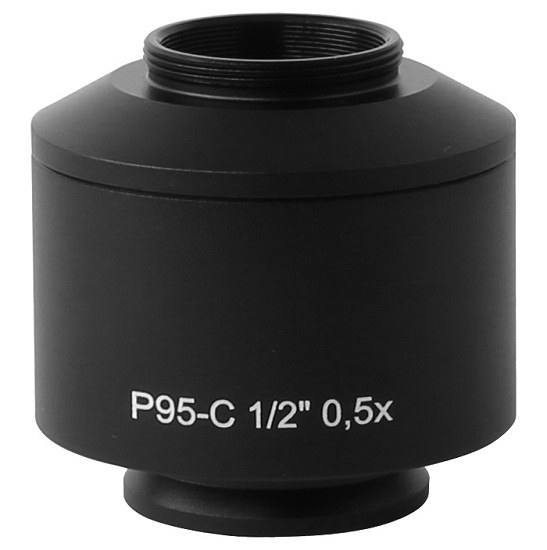

BestScope BCN-ZS 0.5X C-mount Adapters for Microscope
Feature1. Convert the trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch); 2. With different built-in reduction lens (1.2X, 1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch…
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BCN-ZS 0.5X C-mount Adapters for Microscope
Feature1. Convert the trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch); 2. With different built-in reduction lens (1.2X, 1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips); 3. Can be installed in UIS trinocular tube such as: PrimoStar series and Primo vert series; 4. Build of material: anodized aluminum; 5. Telecentric optics with low light deficiency; 6. Parfocal with different microscope objective lenses; 7. Diffraction limited MTF; 8. Aperture totally coupled with UIS microscope objective’s exit pupil.
Specification
Model | Magnification | Sensor Size | Mount Type | |
BCN-ZS 1.2X | 1.2X | 1”, 4/3” | T2-Mount | |
BCN-ZS 1.0X | 1.0X | 1”, 2/3” | C-Mount | |
BCN-ZS 0.8X | 0.8X | 1”, 2/3” | C-Mount | |
BCN-ZS 0.65X | 0.65X | 2/3”, 1/1.8”, 1/2” | C-Mount | |
BCN-ZS 0.5X | 0.5X | 1/1.8”, 1/2”, 1/2.5” | C-Mount | |
BCN-ZS 0.35X | 0.35X | 1/3”, 1/4”, 1/5” | C-Mount | |
Supported Microscope | Specially designed for Primo Star series, Primo vert series | |||
Specifications for BestScope BCN-ZS 0.5X C-mount Adapters for Microscope
| Manufacturer | BestScope |
