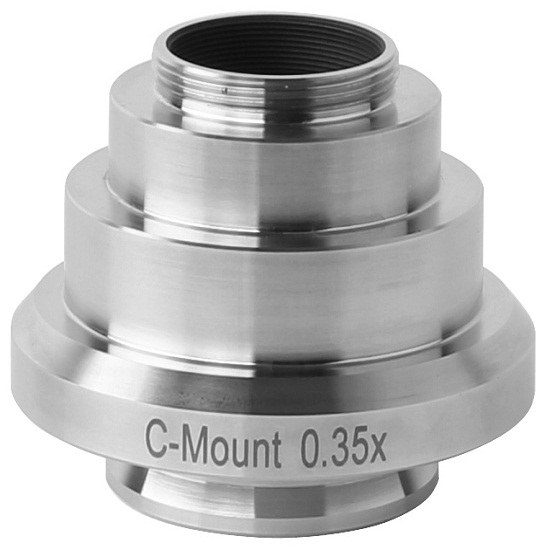

BestScope BCN-LC 0.35X C-mount Adapters for Microscope
Feature Convert the trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);With different built-in reduction lens (1.2X,1X, 0.8X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);Can be…
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BCN-LC 0.35X C-mount Adapters for Microscope
Feature Convert the trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);With different built-in reduction lens (1.2X,1X, 0.8X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);Can be installed in UIS trinocular tube such as: specially designed for DM series biology microscopes and industrial microscopes;Build of material: stainless steel material;Telecentric optics with low light deficiency;Parfocal with different microscope objective lenses;Diffraction limited MTF;Aperture totally coupled with UIS microscope objective’s exit pupil.
Specification
Model | Magnification | Sensor Size | Mount Type | |
BCN-LC 1.2X | 1.2X | 4/3”, 1” | T2 Mount | |
BCN-LC 1.0X | 1.0X | 1”, 2/3” | C-Mount | |
BCN-LC 0.8X | 0.8X | 1”, 2/3” | C-Mount | |
BCN-LC 0.7X | 0.7X | 2/3”,1/1.8”,1/2” | C-Mount | |
BCN-LC 0.55X | 0.55X | 1/1.8”,1/2”,1/2.5” | C-Mount | |
BCN-LC 0.35X | 0.35X | 1/2.5”,1/3”,1/4” | C-Mount | |
Supported | Specially designed for DM series biology microscopes and industrial microscopes | |||
Specifications for BestScope BCN-LC 0.35X C-mount Adapters for Microscope
| Manufacturer | BestScope |
