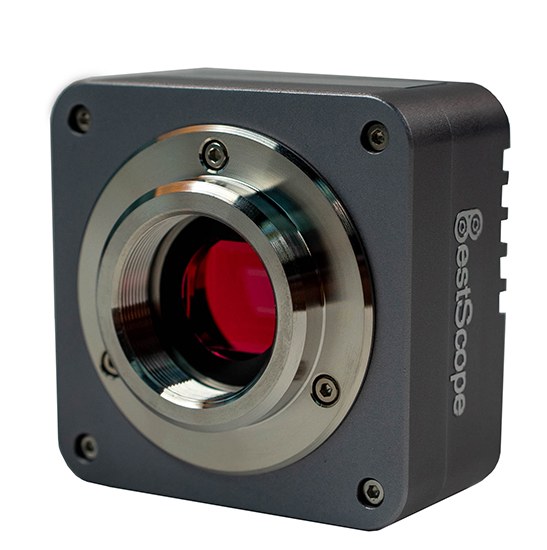

BestScope BUC2E-310C C-mount USB2.0 CMOS Microscope Camera (IMX123 Sensor, 3.1MP)
BUC2E-310C(With IMX123(C) Sensor) cameras adopt CMOS sensor as the image-picking device and USB2.0 is used as the data transfer interface.BUC2E hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing.BUC2E comes with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.The BUC2E can…
Model: BUC2E-310C | Sensor: 3.1M/IMX123(C) | Sensor Size(mm): 1/2.8“ (5.12x3.84) | Pixel(μm): 2.5x2.5 | FPS: 10.5@2048x1536 | Binning: 1x1 | Exposure: 0.105ms~15s | USB Port: USB2.0 Port
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC2E-310C C-mount USB2.0 CMOS Microscope Camera (IMX123 Sensor, 3.1MP)
BUC2E-310C(With IMX123(C) Sensor) cameras adopt CMOS sensor as the image-picking device and USB2.0 is used as the data transfer interface.BUC2E hardware resolutions range from 1.2M to 8.3M and come with the integrated CNC aluminum alloy compact housing.BUC2E comes with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.The BUC2E can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
Key Details
| Model | BUC2E-310C |
| Sensor | 3.1M/IMX123(C) |
| Sensor Size(mm) | 1/2.8“ (5.12x3.84) |
| Pixel(μm) | 2.5x2.5 |
| FPS | 10.5@2048x1536 |
| Binning | 1x1 |
| Exposure | 0.105ms~15s |
| USB Port | USB2.0 Port |
Features
- Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB2.0 interface;
- Real-time 8/12/14/16bit depth switch(depending on sensor);
- Super high sensitivity up to 2040mV(IMX224);
- Ultra low noise and low power dissipation by using column-parallel A/D conversion;
- With hardware resolution among 1.2M to 8.3M;
- Rolling Shutter;
- Standard C-Mount camera;
- CNC aluminum alloy housing;
- USB2.0 interface ensuring high speed data transmission;
- With advanced video & image processing application ImageView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.Net, DirectShow, Twain.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BUC2E-830C | 8.3M/IMX274(C) 1/2.5”(6.22×3.50) | 1.62×1.62 | 236mv with 1/30s 0.1mv with 1/30s | 4@3840×2160 16@1920×1080 | 1×1 2×2 | 0.244ms~15s |
BUC2E-660C | 6.6M/IMX326(C) 1/2.9”(4.98×3.50) | 1.62×1.62 | 236mv with 1/30s 0.1mv with 1/30s | 5@3072×2160 6@2592×1944 6@3072×1728 7@2160×2160 | 1×1 1×1 1×1 1×1 | 0.244ms~15s |
BUC2E-530C | 5.3M/IMX178(C) 1/1.9“ (7.37×4.15) | 2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s | 5.5@3072 x1728 | 1×1, 2×2 | 0.105ms~15s |
BUC2E-500C | 5.0M/IMX335(C) 1/2.8“ (5.18×3.89) | 2.0×2.0 | 505mv with 1/30s 0.13mv with 1/30s | 6.4@2592 x1944 | 1×1, 2×2 | 0.1ms~15s |
BUC2E-310C | 3.1M/IMX123(C) 1/2.8“ (5.12×3.84) | 2.5×2.5 | 600mv with 1/30s 0.15mv with 1/30s | 10.5@2048×1536 | 1×1 | 0.105ms~15s |
BUC2E-200C | 2.0M/IMX290(C) 1/2.8“(5.56×3.13) | 2.9 x2.9 | 1300mv with 1/30s 0.15mv with 1/30s | 17@1920×1080 | 1×1 | 0.105ms~15s |
BUC2E-120C | 1.2M/IMX224(C) 1/3“(4.80×3.60) | 3.75 x3.75 | 2040mv with 1/30s 0.15mv with 1/30s | 27@1280×960 54@640×480 | 1×1, 2×2 | 0.105ms~15s |
C: Color; M: Monochrome;
Other Specification for BUC2E Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C# /VB.Net, DirectShow, Twain |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature (in Centigrade) | -10~ 50 |
Storage Temperature (in Centigrade) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB Port: USB2.0 Port | |
Display: 17” or Larger | |
CD-ROM | |
Dimension of BUC2E
The BUC2E body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information for BUC2E
Standard Camera Packing List | |||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
B | Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) | ||
C | BUC2E series USB2.0 C-mount CMOS camera | ||
D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
E | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | BCN2A-0.37× |
C-mount to Dia.31.75mm eyepiece tube | BCN3A-0.37× | ||
G | Fixed lens Adapter | C-mount to Dia.23.2mm eyepiece tube | BCN2F-0.37× |
C-Mount to Dia.31.75mm Eyepiece Tube | BCN3F-0.37× | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
