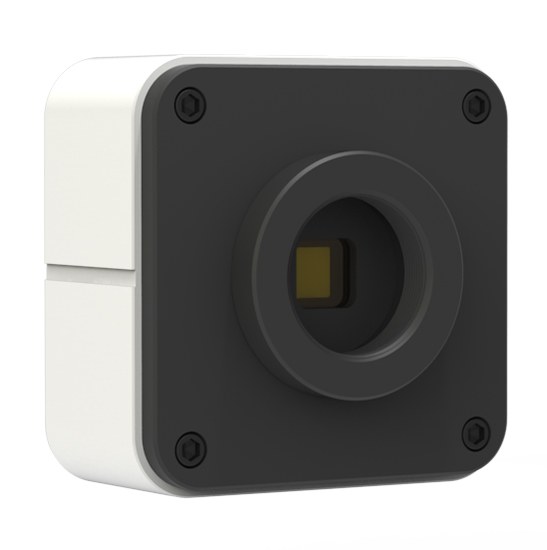

BestScope BUC2D-200C USB2.0 Graphics Accelerated Microscope Camera (IMX323LQN-C Sensor, 2.0MP)
With Innovative customized ISP technology, the BUC2D-200C(With IMX323LQN-C Sensor) cameras’ frame rate has been greatly improved. The frame rate of uncompressed original imaging is 2MP@30fps, 5MP@22fps, 12MP@15fps. This series digital cameras provide simple and economical microscopy imaging. They are widely used in academic and medical fields for precision and high resolution microscope image capturing and processing.
Model: BUC2D-200C | Sensor Size: 1/2.9" | Resolution: 2MP | Pixel Size: 2.8μmx2.8μm | Frame Rate: 30fps | Data Interface: USB2.0 | Color/Mono: Color | Exposure Mode: Auto/Manual
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BUC2D-200C USB2.0 Graphics Accelerated Microscope Camera (IMX323LQN-C Sensor, 2.0MP)
With Innovative customized ISP technology, the BUC2D-200C(With IMX323LQN-C Sensor) cameras’ frame rate has been greatly improved. The frame rate of uncompressed original imaging is 2MP@30fps, 5MP@22fps, 12MP@15fps. This series digital cameras provide simple and economical microscopy imaging. They are widely used in academic and medical fields for precision and high resolution microscope image capturing and processing.
Key Details
| Model | BUC2D-200C |
| Sensor Size | 1/2.9" |
| Resolution | 2MP |
| Pixel Size | 2.8μmx2.8μm |
| Frame Rate | 30fps |
| Data Interface | USB2.0 |
| Color/Mono | Color |
| Exposure Mode | Auto/Manual |
Specification
Model | BUC2D-200C | BUC2D-500C | BUC2D-1200C |
Sensor Model | IMX323LQN-C | IMX335LQN-C | Panasonic, MN34120 |
Sensor Size | 1/2.9″ | 1/2.8″ | 1/2.33″ |
Resolution | 2MP, 1920×1080 | 5MP, 2560×1920 | 12MP, 4000×3000 |
Pixel Size | 2.8μmx2.8μm | 2.0 μmx2.0μm | 1.335μmx1.335μm |
Frame Rate | 30fps | 22fps | 15fps |
Color/Mono | Color | ||
Shutter Type | Rolling Shutter | ||
Exposure Mode | Auto/Manual | ||
Picture Format | TIFF/JPG/PNG/DICOM | ||
Operating System | Windows 7/8/10 (32 Bit/64 Bit) | ||
PC Software | Capture 2.0 | ||
SDK | C/C++, C#, Directshow | ||
Optical Interface | C-Mount | ||
Data Interface | USB2.0 | ||
Operating Temperature | 0-60℃ | ||
Operating Humidity | 10%-85% | ||
Camera Size | 68X68X42.5(mm) | ||
Camera Weight | 253g | ||
Note: | Capture 2.0 software does not support the dark field image processing module, real-time image stitching and real-time depth of field fusion function module when it is used with BUC2D cameras. | ||
المواصفات BestScope BUC2D-200C USB2.0 Graphics Accelerated Microscope Camera (IMX323LQN-C Sensor, 2.0MP)
| Manufacturer | BestScope |
