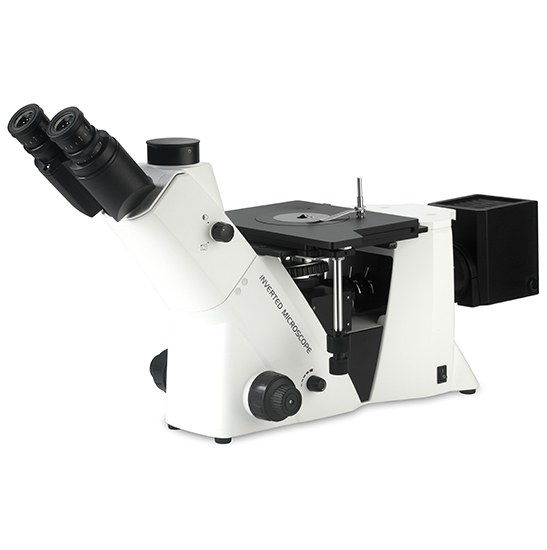

BestScope BS-6005 Trinocular Inverted Metallurgical Microscope

Manufacturer

1.00 E£ 1.00 E£ 1.0 EGP

1.00 E£

هذه التركيبة غير موجودة.

IntroductionBS-6005 series inverted metallurgical microscopes adopt professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation. They combine bright field, dark field and polarizing observation. They are widely used in teaching and research of metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and similar fields.
Model: BS-6005 | Magnification: 50×-500× | Eyepiece: WF10× | Objective: 5×,10×,20×,50× | Nosepiece: Quintuple | Illumination: 12V/50W | Viewing Head: Trinocular | Focusing: Coaxial Coarse

الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days

BS-6005 Trinocular Inverted Metallurgical Microscope

Key Details

Model	BS-6005
Magnification	50×-500×
Eyepiece	WF10×
Objective	5×,10×,20×,50×
Nosepiece	Quintuple
Illumination	12V/50W
Viewing Head	Trinocular
Focusing	Coaxial Coarse

Features

1.Dark field observation available

Dark field objectives are available, make observation in dark & bright field.

2.Wide view field

Wide field eyepiece, view field up to 22mm for comfortable observation.

3.High intensity illumination

12V/50W Halogen lamp provide high intensity illumination, can detect the details better.

4.High quality objectives

High quality bright field, bright & dark field metallurgical objective.

Metallurgical LWD Infinite Plan Objectives

Metallurgical LWD Infinite Plan Objectives for Bright & Dark Field

5.Large stage

Large size (210 mm×180mm) three-layer working stage, more choice for samples.

6.Viewing head

Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece), easy to use camera and have high definition and high resolution images.

7.Standard polarizing set

Specification

Item	Specification		BS-6005	BS-6005D
Optical System	Infinite optical system		●	●
Viewing Head	Inclined 30° trinocular tube, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80		●	●
Eyepiece	Wide field eyepiece WF10X/22mm, adjustable, tube diameter: 30mm		●	●
Eyepiece	Wide field eyepiece WF10X/22mm, adjustable, with reticule 0.1mm		●	●
Objectives	Infinity Long Working Distance Plan Metallurgical Objectives	5X/ NA 0.15, WD=21.0mm	●	○
		10X/ NA 0.30, WD=20.0mm	●	○
		20X/ NA 0.40, WD=15.0mm	●	○
		50X/ NA 0.55, WD=10.0mm	●	○
		50X/ NA 0.75, WD=4.25mm	○	○
		80X/ NA 0.80, WD=0.85mm	○	○
		(Dry) 100X/NA 0.85, WD=3.0mm	○	○
	Infinity Long Working Distance Bright & Dark Field Plan Metallurgical Objectives	5X/ NA 0.13, WD=7.3mm	●
		10X/ NA 0.25, WD=11.5mm	●
		20X/ NA 0.40, WD=5.6mm	●
		50X/ NA 0.70, WD= 1.6mm	●
Nosepiece	Quintuple nosepiece		●
Nosepiece	Quadruple nosepiece, specially for bright & dark field objectives		●
Focusing	Low position coaxial coarse and fine adjustment. With tightness adjustment. Coarse stroke per rotation 10mm, fine stroke per rotation 0.2mm; fine division 2μm.		●	●
Stage	Stage size: 210mm180mm, moving range: 50mm50mm. Scale: 0.1mm, round slide size: Φ110mm		●	●
	Sample holder		○	○
	Glass holder		○	○
Illumination	12V/50W Halogen lamp, input voltage: 100V-240V		●	●
Illumination	5W LED lamp, input voltage: 100V-240V		○	○
Auto power on-off system	Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching		○	○
Polarizing kit	Polarizer and the analyzer		●	●
Filter	Blue filter (Φ34)		●	●
	Green filter (Φ34)		○	○
	Amber filter (Φ34)		○	○
	Grey filter (Φ34)		○	○
Video Adapter	0.35X C-mount adapter, adjustable focus		○	○
	0.5X C-mount adapter, adjustable focus		○	○
	0.75X C-mount adapter, adjustable focus		○	○
	1X C-mount adapter, adjustable focus		○	○
	Trinocular digital eyepiece interface		○	○
Packing	Packing Size: 660mm×590mm×325mm, Gross Weight: 17 kgs, Net Weight: 12.5 kgs		●	●

Note: ● Standard Outfit, ○ Optional

Sample Image

Dimension

Unit: mm

System Diagram
