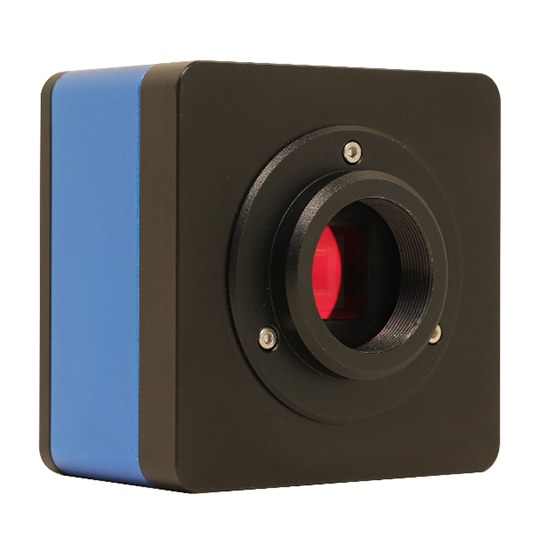

BestScope BHC2A-1080P2MPA HDMI Digital Camera
The BHC2A Series HDMI Camera is intended for acquisition of digital images from stereo microscopes, biological microscopes.
Model: BHC2A-1080P2MPA | Image Sensor: IMX385(C) | Chip Size: 1/2"(7.2x4.05) | Pixel Size: 3.75x3.75 | FPS: 60@1920*1080(HDMI) | Binning: 1x1 | Exposure Time: 0.04~1000 | G Sensitivity: 1175mv with 1/30s
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BHC2A-1080P2MPA HDMI Digital Camera
The BHC2A Series HDMI Camera is intended for acquisition of digital images from stereo microscopes, biological microscopes.
Key Details
| Model | BHC2A-1080P2MPA |
| Image Sensor | IMX385(C) |
| Chip Size | 1/2"(7.2x4.05) |
| Pixel Size | 3.75x3.75 |
| FPS | 60@1920*1080(HDMI) |
| Binning | 1x1 |
| Exposure Time | 0.04~1000 |
| G Sensitivity | 1175mv with 1/30s |
Features
The basic characteristic of BHC2A-1080P2MPA can be summarized as follows:
HDMI camera with Sony Exmor/STARVIS back-illuminated CMOS sensor
Embedded XCamView software for controlling cameras with measurement, grid line overlay, and custom templates functions
Providing automatic measurement functions such as automatic edge finding, parallel line distance measurement and rectangle measurement
USB flash drive for captured image and video storage, support local preview and playback,picture to picture, picture to video comparison functions
Excellent ISP with functions such as dark enhancement, sharpening, and 3D denoising
Supports quick switching of default modes for biological and stereoscopic microscopes, making it convenient for users to in different scenarios
Specification
Order Code | Sensor & Size (mm) | Pixel (μm) | G Sensitivity Dark Signal | FPS/Resolution ADC | Binning | Exposure (ms) |
BHC2A-1080P2MPA | Sony IMX385(C) 1/2″(7.2×4.05) | 3.75×3.75 | 1175mv with 1/30s 0.15mv with 1/30s | 60@1920*1080(HDMI) | 1×1 | 0.04~1000 |
BHC2A-1080P2MPA HDMI Camera Interface Panel Diagrams
Interface or Button | Function Description |
DC12V | Power adapter connector (12V/1A) |
LED | LED status indicator |
USB | Connect USB mouse for easy operation with embedded XCamView software |
HDMI | Comply with HDMI1.4 standard. 1080P format video output |
Video Output Interface | Function Description |
HDMI Interface | Comply with HDMI1.4 standard 60fps@1080P |
Other Function | Function Description |
Video Record | Video format: 8M (3840*2160) H264/H265 encoded MP4 file Frame rate during video record:60fps |
Image Capture | 2M (1920*1080) JPEG/TIFF image in USB flash drive |
Measurement Saving | Measurement information saved in different layer with image content in Layered mode. Measurement information is saved together with image content in Burn in Mode |
ISP | Exposure (Automatic / Manual Exposure) / Gain, White Balance, Sharpness, 3D Denoising, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray,50HZ/60HZ Anti-flicker Function |
Image Operation | Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison function between real-time video and pictures on storage media, image to image comparison), Embedded Files Browser, Video Playback, various Measurement Function |
Embedded RTC(Optional) | To support accurate time on board |
Restore Factory Settings | Restore camera parameters to its factory status |
Multiple Language Support | English / Simplified Chinese |
Operating Environment | |
Operating Temperature (in Centidegree) | -10°~ 50° |
Storage Temperature (in Centidegree) | -20°~ 60° |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 12V/1A Adapter |
Dimension
Packing Information
Packing Information of BHC2A-1080P2MPA Series
Standard Packing List | |||
A | Gift box: L:18.4cm W:17.8cm H:8.1cm | ||
B | BHC2A Camera (pls specify which model you want) | ||
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A | ||
D | USB Mouse | ||
E | HDMI Cable | ||
Optional Accessory | |||
F | USB flash drive | ||
G | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube | |
H | Fixed lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube | |
Note: For G and H optional items, please specify your camera type (C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
I | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
J | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X, Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
Sample
Sunflower Stem.C.S. Captured with BHC2A-1080P2MPA
Paramecium.WM. Captured with BHC2A-1080P2MPA
Fiber Connective Tissue.Sec. Captured with BHC2A-1080P2MPA
Circuit Board Captured with BHC2A-1080P2MPA
المواصفات BestScope BHC2A-1080P2MPA HDMI Digital Camera
| Manufacturer | BestScope |
