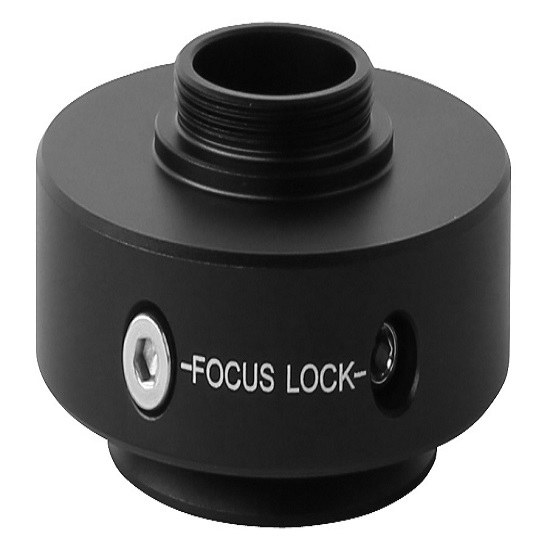

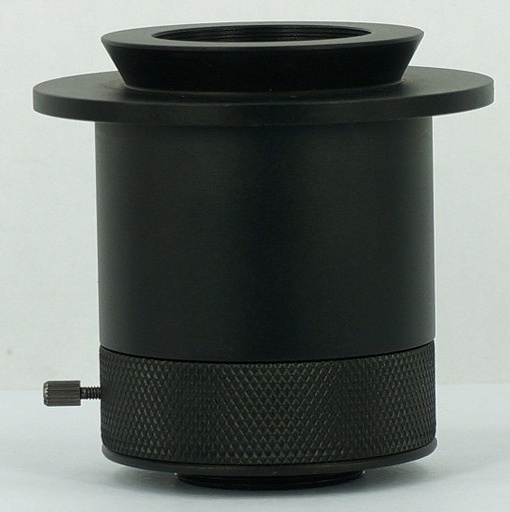

BestScope BCN-OLP 0.35X C-mount Adapters for Microscope
Feature Convert the trinocular microscope phototube/head/port (have standard 35mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);With different built-in reduction lens (1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor…
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BCN-OLP 0.35X C-mount Adapters for Microscope
Feature Convert the trinocular microscope phototube/head/port (have standard 35mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);With different built-in reduction lens (1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);Can be installed in UIS trinocular tube such as : BX series, BX2 series, CX series, CX2 series, MX series;Build of material: anodized aluminum;Telecentric optics with low light deficiency;Parfocal with different microscope objective lenses;Diffraction limited MTF;Aperture totally coupled with UIS microscope objective’s exit pupil.
Specifications
Model | Magnification | Sensor Size | Mount Type | |
BCN-OLP 1.2X | 1.2X | 4/3”,1” | T2-Mount | |
BCN-OLP 1.0X | 1.0X | 1”, 2/3” | C-Mount | |
BCN-OLP 0.8X | 0.80X | 1”,2/3” | C-Mount | |
BCN-OLP 0.63X | 0.63X | 2/3”,1/1.8”,1/2” | C-Mount | |
BCN-OLP 0.5X | 0.50X | 1/1.8”,1/2”,1/2.5” | C-Mount | |
BCN-OLP 0.4X | 0.40X | 1/2.5”,1/3”,1/4” | C-Mount | |
BCN-OLP 0.35X | 0.35X | 1/3”,1/4”,1/5” | C-Mount | |
Supported Microscope | Specially designed for CX, BX, MX, STM, SZX, IX, GX(GX41) series microscopes | |||
