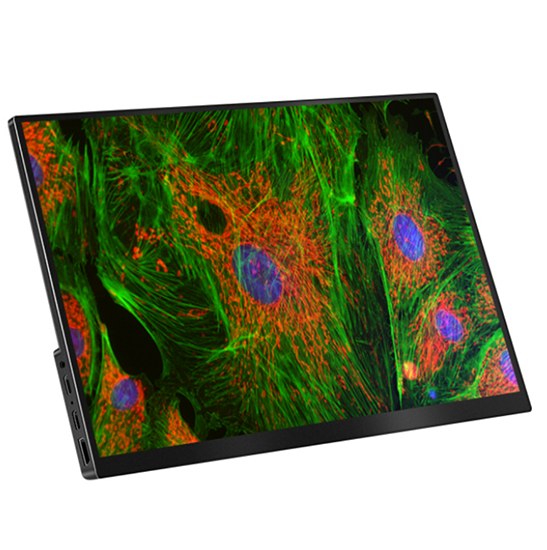

BestScope UHD4K133B 4K UHD HDMI Displayer (LCD screen)
IntroductionUHD4K133B/UHD4K133BT is born with BWHC and BHC4 series HDMI camera and can be used for 4K resolution display screen. UHD4K133B adopts AM-OLED panel, and UHD4K133BT adopts IPS LCD panel (Super TFT) to guarantee the wide view angle (approaching 178 degrees) and high contrast. UHD4K133B is a regular mouse screen that can be paired with an HDMI camera to create an integrated imaging and display system, which is flexible and intuitive. At…
Order Code: UHD4K133B | Active Area (Inch): 13.3 | Video Fomat: HDMI | Resolution: 4K | Contrast: 100000:1 | Color Gamut: 100% DCI-P3 | View Angle: IPS Full View(178 degree ) | Touch Function: NA
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
UHD4K133B 4K UHD HDMI Displayer (LCD screen)
IntroductionUHD4K133B/UHD4K133BT is born with BWHC and BHC4 series HDMI camera and can be used for 4K resolution display screen. UHD4K133B adopts AM-OLED panel, and UHD4K133BT adopts IPS LCD panel (Super TFT) to guarantee the wide view angle (approaching 178 degrees) and high contrast. UHD4K133B is a regular mouse screen that can be paired with an HDMI camera to create an integrated imaging and display system, which is flexible and intuitive. At the same time, the high-quality display characteristics of UHD4K133B can fully utilize the features of an HDMI camera.UHD4K133BT is a touch screen that can be easily operated by connecting to an HDMI camera that supports touch functionality.
Key Details
| Order Code | UHD4K133B |
| Active Area (Inch) | 13.3 |
| Video Fomat | HDMI |
| Resolution | 4K |
| Contrast | 100000:1 |
| Color Gamut | 100% DCI-P3 |
| View Angle | IPS Full View(178 degree ) |
| Touch Function | NA |
Features
The basic characteristics of UHD4K133B/UHD4K133BT are as follows:
1.True 4K HDMI displayer, meet the needs of most applications
2.13.3 inch active area
3.IPS LCD panel, 178° wide viewing angle
4.HDR dynamic image enhancement
5.100% SRGB primary gamut (UHD4K133B) / 100%DCI-P3 gamut (UHD4K133BT)
6.400cd/m2display brightness, high contrast ratio up to 1000:1
7.4mm narrow frame design on three sides, with 81.5% of the screen area, great visual experience
8.No delay is felt with 3ms response, and dynamic definition is optimized to keep the picture stable and clear without residual shadow
9.Standard HDMI interface
10.Connect computer to realize screen projection, splitting and expansion
11.Integrated invisible folding support, easy viewing angle adjustment
12.Easy to connect with HDMI camera
Specification
Order Code | Active Area (Inch) | Video Fomat | Resolution | Contrast | Color Gamut | View Angle | Touch Function |
UHD4K133B | 13.3 | HDMI | 4K | 100000:1 | 100% DCI-P3 | IPS Full View(178°) | NA |
UHD4K133BT | 13.3 | HDMI | 4K | 1000:1 | 100% SRGB | IPS Full View(178°) | Available |
Basic Performance | ||
UHD4K133B | UHD4K133BT | |
Panel Type | Common | Touch, 2 means square |
LCD Panel | AM-OLED | IPS LCD Screen |
Input Video Format | HDMI | |
Native Resolution | 3840 x 2160 | |
Display Type | 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD | |
Typical Contrast Ratio | 100000:1 | 1000:1 |
Colors | 10.7 billion | 16.7 million |
Viewing Angle(L/R/U/D) | IPS Full View (178°) | |
Active Display Area | 293.76mm(W) × 165.24mm(H) | |
Pixel Pitch | 0.0765×0.0765 (H×V) (332PPI) | |
Refresh Rate | 60Hz | |
Brightness | 400cd/m2 | |
Backlight | OLED self-luminous | LED Backlight, 50000 hours |
Outline Parameter | ||
Color | Black | |
Dimension | 306(L)*183(H)*8(T) mm | |
Weight | 560g | |
Operating Environment | ||
Operating Temperature | -15 Degree~55 Degree | |
Humidity Non Condensing | Operating:10%-90%, Storage: 5%-90% | |
Synchronization Range | 30-80 KHz Horizontal, 55-75 Hz Vertical | |
Power Supply | AC110V-220V /DC5~12V(1A ) (Type C) | |
Power Consumption | Max 15W | Max 12W |
Dimension
Dimension, Interface and Control Button of UHD4K133BT Displayer
Integrated Invisible Folding Support of UHD4K133B/UHD4K133BT Displayer
Right Side View of UHD4K133B/UHD4K133BT Displayer and BWHC Series HDMI Camera’s Connection
Back View of UHD4K133B/UHD4K133BT Displayer and BWHC Series HDMI Camera’s Connection
Monocular microscope, BWHC2 Series HDMI Camera and UHD4K133B/UHD4K133BT Displayer
المواصفات BestScope UHD4K133B 4K UHD HDMI Displayer (LCD screen)
| Manufacturer | BestScope |
