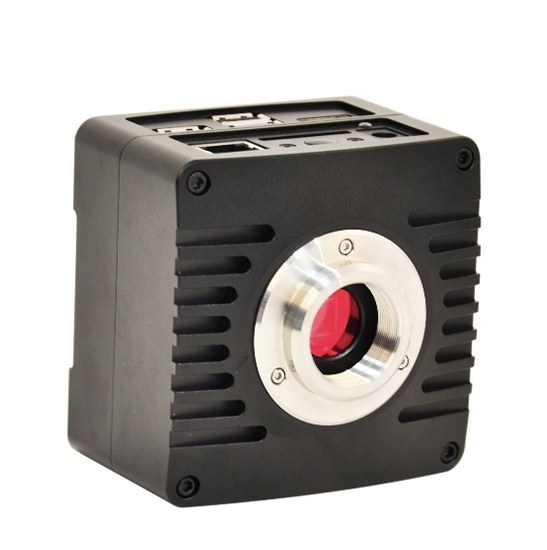

BestScope BWHC4-4K8MPA HDMI/NETWORK/USB Multi-outputs C-mount CMOS Camera
The BWHC4-4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching.
Model: BWHC4-4K8MPA | Sensor: IMX678(C) | Sensor Size(mm): 1/1.8"(7.68x4.32) | Pixel(μm): 2.0x2.0 | FPS/Resolution: 60@3840*2160 | Binning: 1x1 | Exposure: 0.019~1000 | USB Port: USB3.0
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BWHC4-4K8MPA HDMI/NETWORK/USB Multi-outputs C-mount CMOS Camera
The BWHC4-4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching.
Key Details
| Model | BWHC4-4K8MPA |
| Sensor | IMX678(C) |
| Sensor Size(mm) | 1/1.8"(7.68x4.32) |
| Pixel(μm) | 2.0x2.0 |
| FPS/Resolution | 60@3840*2160 |
| Binning | 1x1 |
| Exposure | 0.019~1000 |
| USB Port | USB3.0 |
Features
The basic characteristics are listed as below:
- Sony STARVIS 2 back-illuminated CMOS sensor
- 4K HDMI/ NETWORK/ USB multiple video synchronous outputs
- 4K/1080P auto switching according to monitor resolution
- High frame rate output, supporting up to 4K 75fps
- Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, and other functions
- Excellent ISP with local tone mapping and 3D denoising
- Provide two sets of default ISP parameters for biological microscopes and stereo microscopes
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
- ImageView software for PC
- iOS/Android applications for smart phones or tablets
Specification
| Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | Sensor Output (FPS/Resolution) | Binning | Exposure(ms) |
BWHC4-4K8MPA | Sony IMX678(C) 1/1.8″(7.68×4.32) | 2.0×2.0 | 3541mv with 1/30s 0.15mv with 1/30s | 60@3840*2160 | 1×1 | 0.019~1000 |
BWHC4-4K8MPB | Sony IMX585(C) 1/1.2″(11.14×6.26) | 2.9×2.9 | 5970mv with 1/30s 0.13mv with 1/30s | 60@3840*2160 | 1×1 | 0.048~1000 |
Camera Model | Video Saving(FPS/Resolution) | HDMI2.0(FPS/Resolution) | USB3.0(FPS/Resolution) | NETWORK(FPS/Resolution) |
BWHC4-4K8MPA | 60@3840*2160 60@1920*1080 | 60@3840*2160 60@1920*1080 | 30@3840*2160 45@2688*1512 60@1920*1080 | 30@3840*2160 60@1920*1080 60@1280*720 |
BWHC4-4K8MPB | 60@3840*2160 60@1920*1080 | 60@3840*2160 60@1920*1080 | 30@3840*2160 45@2688*1512 60@1920*1080 | 30@3840*2160 60@1920*1080 60@1280*720 |
Available Ports on the Back Panel of the Camera Body (Cubic and Flat Shape)
Interface or Button | Function Description |
USB Mouse | Connect USB mouse for easy operation with embedded XCamView software (Flat shape without labelling) |
USB3.0 | Connect USB flash drive to save pictures and videos |
USB Video | Connect PC or other host device to realize video image transmission |
HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
LAN | LAN port to connect router and switch to transfer video |
SD | SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
ON/OFF | Power switch |
LED | LED status indicator |
DC12V | Power adapter connection (12V/1A) |
Video Output Interface | Function Description |
HDMI Interface | Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P |
LAN Interface | Support real time resolution switching(4K/1080P/720P) |
WiFi Interface | Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
USB Video Interface | Connecting USB Video port of PC for video transfer |
Other Function | Function Description |
Video Saving | Video format:8M(3840*2160) H264/H265 encoded MP4 file |
Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
Measurement Saving | Measurement information saved in different layer with image content |
ISP | Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment,Gamma Adjustment, Contrast Adjustment, Brightness Adjustment,Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
Image Operation | Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, EDF, Cross Line, Overlay, PIP, Browser(including Picture Browsing, Video Playback, Video Compare, Picture Compare, EDF, Image Processing), Measurement Function |
Embedded RTC(Optional) | To support accurate time on board |
Restore Factory Settings | Restore camera parameters to its factory status |
Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
Software Environment under Network/USB Video Output | |
White Balance | Auto White Balance |
Color Technique | Ultra-Fine Color Engine |
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
Recording System | Still Picture or Movie |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 4GB or More | |
Ethernet Port: RJ45 Ethernet Port | |
Display:19” or Larger | |
CD-ROM | |
Operating Environment | |
Operating Temperature (in Centidegree) | -10°~ 50° |
Storage Temperature (in Centidegree ) | -20°~ 60° |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 12V/1A Adapter |
Dimension
Dimension of BWHC4-4K Series (Cubic and Flat Shape)
Packing Information
BWHC4-4K Series Camera Packing Information (Cubic and Flat Shape)
Standard Packing List | |||
A | Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) | ||
B | BWHC4-4K Camera (One of the two different shapes) | ||
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A | ||
D | USB Mouse | ||
E | HDMI Cable | ||
F | USB3.0 A male to A male gold-plated connectors cable /2.0m | ||
G | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
H | SD Card(16G or above; Speed: class 10) | ||
I | USB flash drive | ||
J | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube | |
K | Fixed lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube | |
Note: For J and K optional items, please specify your camera type (C-mount, microscope camera or telescope camera), the engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
L | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
M | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
N | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
O | USB WiFi adapter | ||
P | Ethernet cable | ||
Sample
Corn Root Tip.L.S Captured with BWHC3-4K8MPA
Three Year Tilia Stem.C.S Captured with BWHC3-4K8MPA
Corn Leaf Captured with BWHC3-4K8MPA
Circuit Board Captured with BWHC3-4K8MPA
المواصفات BestScope BWHC4-4K8MPA HDMI/NETWORK/USB Multi-outputs C-mount CMOS Camera
| Manufacturer | BestScope |
