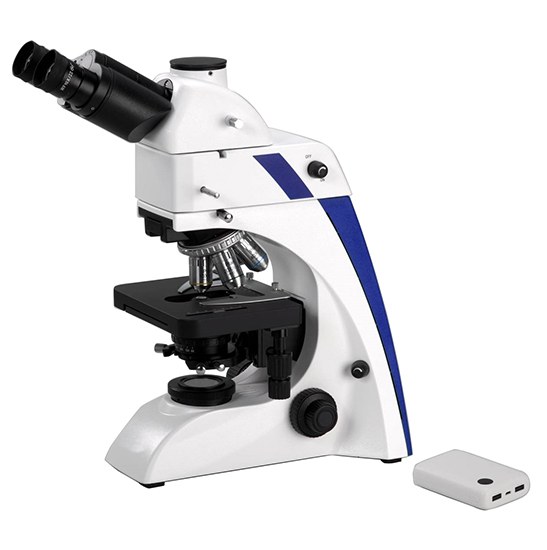

BestScope BS-2063F2T(LED, TB) Fluorescence Trinocular Biological Microscope

Item

Specification

BS-2063F2B

(LED, TB)

BS-2063F2T

(LED, TB)

Optical System

Color Corrected Infinite Optical System

●

●

Viewing Head

Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-76mm

●

Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80

●

Eyepiece

Wide field eyepiece WF10X/22mm, diopter adjustable, tube diameter: 30mm

●

●

WF15×/16mm, diopter adjustable

○

○

WF10×/22mm with 0.1mm eyepiece micrometer

○

○

Infinite Plan Achromatic Objective

2X/ NA 0.06

○

○

4X/ NA 0.10, WD=12.10mm

●

●

10X/ NA 0.25, WD4.64mm

●

●

20X/ NA 0.40 (S), WD=2.41mm

●

●

40X/ NA 0.66 (S), WD=0.65mm

●

●

60X/ NA 0.80 (S), WD=0.33mm

○

○

(Oil) 100X/ NA 1.25 (S), WD=0.12mm

●

●

(Water) 100X/ NA 1.15 (S), WD=0.19mm

○

○

Infinity Plan Semi-Apochromatic Fluorescent Objectives

4X/NA=0.16, WD=17.15mm

○

○

10X/NA=0.30, WD=7.68mm

○

○

20X/NA=0.50, WD=1.96mm

○

○

40X/NA=0.75, WD=0.78mm

○

○

40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover)

○

○

(Oil) 100X/NA=1.3, WD=0.15mm

○

○

Nosepiece

Backward quintuple nosepiece

●

●

Stage

Rackless (integrated) stage, size: 182mm*140mm, travel range: 77mm*52mm, with two slide holders

●

●

Stage size: 175mm*145mm. Travel: 78mm*55mm, scale: 0.1mm. With two slide holders

○

○

Condenser

Swing-out condenser NA 0.9/0.13, with iris diaphragm

●

●

Dark field condenser, dry, apply to 4X-40X objective

○

○

Dark field condenser, wet, apply to 100X objective

○

○

Focusing

Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, coarse stroke 42.4mm/rotation, fine stroke 0.2mm/rotation, fine division: 2µm

●

●

Field Diaphragm

Field diaphragm

●

●

Koehler Illumination

12V/30W Halogen lamp

●

●

5W LED lamp

○

○

Polarizing Unit

Analyzer and polarizer

○

○

Phase Contrast Unit

Quintuple hole turret unit with 10X/20X/40X/100X phase contrast objective

○

○

Independent slot with 10X/20X/40X/100X phase contrast objective

○

○

Fluorescent Attachment

B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.

○

○

UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.

○

○

B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.

○

○

UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.

○

○

B or G fluorescence unit, 5W-LED fluorescence lamp.

○

○

Auramine long pass fluorescence unit, with 5W LED fluorescence lamp

●

●

B/G fluorescence unit, 5W-LED fluorescence lamp.

○

○

Video Adapter

0.35X C-mount adapter, adjustable focus

○

0.5X C-mount adapter, adjustable focus

●

0.75X C-mount adapter, adjustable focus

○

1X C-mount adapter, adjustable focus

○

Trinocular digital eyepiece interface

○

Photo Adapter

Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras

○

Filter

Blue filter (Φ45)

●

●

Green filter (Φ45)

○

○

Amber filter (Φ45)

○

○

Power Supply

Wide voltage input: 100V～240V

●

●

Packing

1 carton/set, Packing Size: 755mm×340mm×440mm, Gross Weight: 17 kgs, Net Weight: 15 kgs

●

●

Auramine O

Wavelength (nm)

Exciter

470Sp

Dichroic

480DRLP

Barrier

485LP

B Excitation

Wavelength (nm)

Exciter

470/37

Dichroic

505LP

Barrier

515LP

G Excitation

Wavelength (nm)

Exciter

500-550

Dichroic

575

Barrier

590

Uv Excitation

Wavelength (nm)

Exciter

330-380

Dichroic

400

Barrier

435

V Excitation

Wavelength (nm)

Exciter

380-420

Dichroic

430

Barrier

460
