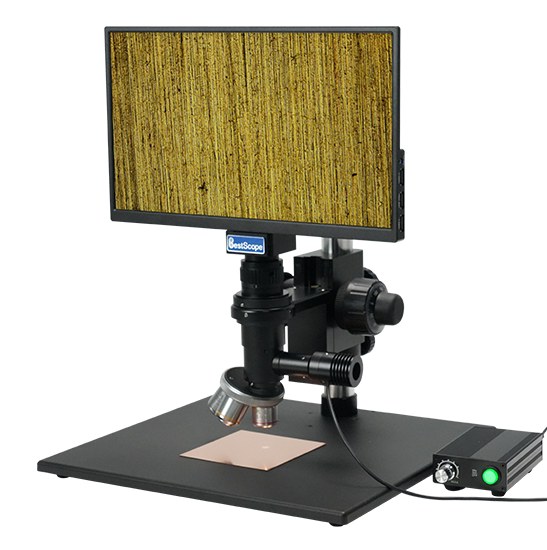

BestScope BLM5-1200B LCD Digital Video Metallurgical Microscope

Item

Specification

BLM5-1200B

Optical System

Apochromatic optical system

●

Magnification

1X

●

Thread Size of Objective

M20.3/M26

●

Focal Length

F”=200mm

●

Nosepiece

Quadruple nosepiece, 26mm thread

●

LCD Digital Camera

BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080.

●

Connecting Ring

Mounting Adapter (45mm to 50mm), used to connect the BTL200B to Φ50mm focus arm

●

Infinite LWD Plan Achromatic Metallurgical Objective

(MA200A)

2.5X/ NA=0.07, WD=11mm

●

5X/ NA=0.12, WD=26.1mm

●

10X/ NA=0.25, WD=20.2mm

●

20X/ NA=0.4, WD=8.8mm

●

40X/ NA=0.6, WD=3.98mm

○

50X/ NA=0.7, WD=3.68mm

○

60X/ NA=0.75, WD=1.22mm

○

60X/ NA=0.75, WD=3.18mm

○

80X/ NA=0.8, WD=1.25mm

○

100X/ NA=0.85, WD=0.4mm

○

Infinite LWD Plan Apochromatic Objectives (LWD M APO200A)

2X/ NA=0.055, WD=34.6mm

○

3.5X/ NA=0.1, WD=40.93mm

○

5X/ NA=0.13, WD=44.5mm

○

10X/ NA=0.28, WD=34mm

○

20X/ NA=0.29, WD=31mm

○

50X/ NA=0.42, WD=20.1mm

○

Infinite LWD Plan Apochromatic Objectives (LWD M APO200B)

2X/ NA=0.075, WD=50mm

○

4X/ NA=0.15, WD=36mm

○

4.5X/ NA=0.18, WD=38mm

○

20X/ NA=0.35, WD=29mm

○

Coaxial light Device

Coaxial device, does not include light source

●

L-Type Coaxial Device with iris diaphragm, light input port Φ11mm, does not include light source

○

Ring Light

BAL-80A LED Ring light, brightness adjustable

○

BAL-52AP LED polarizing ring light, brightness adjustable

○

BAL-52ASL LED side ring light, brightness adjustable

○

BAL-228A Four-zone lighting control separately big area LED ring light

○

BAL-228AG LED four-zone ring light with frosted glass

○

BAL-16P LED polarizing ring light, brightness adjustable

○

BAL-52A LED Ring light, brightness adjustable

○

Back Light

BTL-60A LED back light

○

Point Light

BPL-3A LED point light, 3W, brightness adjustable.

●

BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable

○

BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable

○

Bar Light

BBL-5A bar LED illuminator, 60 LED, 12V/5W

○

Cold Light Source

BSL-3B LED light source with dual goose neck light guide, 6.5W

○

BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp

○

BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp

○

Stage

BMS-302 X-Y moving stage

○

BMS-303 X-Y moving stage

○

BMS-311 X-Y measuring stage

○

BMS-316A X-Y measuring stage

○

BMS-316B X-Y measuring stage

○

BMS-400A large working stage

○

BMS-260A XY working stage

○

Stand and focus Arm

BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm.

○

BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm.

○

BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm.

●

BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm.

○

BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm.

○

BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm.

○

BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm.

○

BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm.

○

BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm.

○

BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm.

○

BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm.

○

BA12 universal boom stand with coarse and fine focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm.

○

BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg.

○

BFA-1 coarse focus arm. Stroke: 50mm.

○

BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm.

○

BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm.

○

BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm.

○

BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm.

○

BFA-6 N interface coarse focus arm. Stroke: 50mm.

○

BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm.

○

Order Code

Sensor & Size (mm)

Pixel (μm)

G Sensitivity

Dark Signal

FPS/Resolution

ADC

Binning

Exposure

BLM5-1200BLCD1

Sony IMX678(C)
1/1.8″(7.68×4.32)

2.0×2.0

1364mv with 1/30s
0.15mv with 1/30s

30@3840*2160

1×1

0.04~1000

Order Code

Video Saving (FPS/Resolution)

HDMI2.0 (FPS/Resolution)

USB2.0 (FPS/Resolution)

WiFi (FPS/Resolution)

BLM5-1200BLCD1

30@3840*2160

30@3840*2160

30@3840*2160

30@3840*2160
