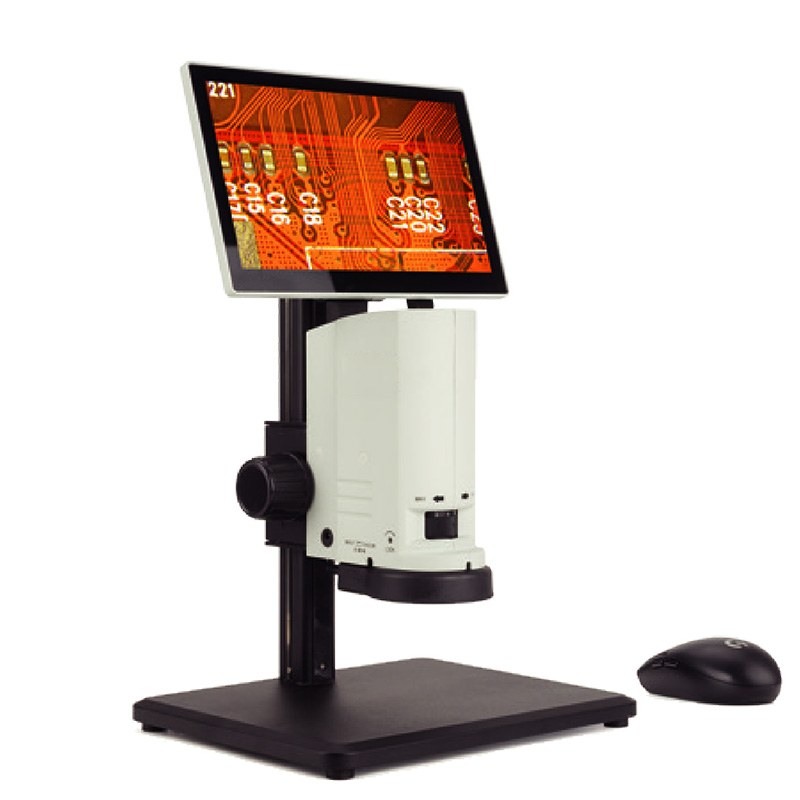

BestScope BLM1-380C LCD Digital Microscope
BLM1-380C digital microscope features a compact and beautiful exterior design, integrating continuous zoom optical module and high-definition camera. The screen, camera and ring lamp are all powered by one power supply, avoiding the mess of mixed wires. The customers can freely choose with or without a screen according to the needs. Compared with traditional optical microscopes, BLM1-380C with display and built-in camera, is easy to observe and…
Model: BLM1-380C | Objectives: 1X objective, WD=105mm | Microscope Body: Digital lens body set, 12-inch high-definition LCD, resolution 1920X1080 | Illumination: LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K | Base: Large flat base, lifting range 225mm
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BLM1-380C LCD Digital Microscope
BLM1-380C digital microscope features a compact and beautiful exterior design, integrating continuous zoom optical module and high-definition camera. The screen, camera and ring lamp are all powered by one power supply, avoiding the mess of mixed wires. The customers can freely choose with or without a screen according to the needs. Compared with traditional optical microscopes, BLM1-380C with display and built-in camera, is easy to observe and operate, also available for digital magnification and data storage. We are committed to providing users with easy and comfortable operating experience by reducing the tiredness caused by long time operations.BLM1-380C is applied to industrial market, with better product reliability.
Key Details
| Model | BLM1-380C |
| Objectives | 1X objective, WD=105mm |
| Microscope Body | Digital lens body set, 12-inch high-definition LCD, resolution 1920X1080 |
| Illumination | LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K |
| Base | Large flat base, lifting range 225mm |
Features
1.Larger field of view
BLM1-380C maximizes the theoretical value of the imaging range of the internal optical system. The actual field of view increased by more than 33% compared to BLM1-370, resulting a larger field of view and wider observation range.
2.More reasonable working distance
The working distance of 0.5X main objective shortens to 110mm, reducing work tiredness caused by excessive working distance. The users can fully place their elbows on the workbench to optimize the operating feel.
3.High frame digital camera
2.0 mega pixels camera with 12-inch HD display (1920*1080, 60fps), low image noise and high contrast ratio, presents smooth and un-delayed imaging under high resolution.
4.DataStorage
USB flesh disk (2.0), supporting up to 128G, real-time image storage, meeting the need of storage and recording.
Photograph type
Measure type
Specification
Item | Specification | BLM1-380A | BLM1-380B | BLM1-380C | BLM1-380D | |
Objectives | Main Objectives | 1X objective, WD=105mm | ● | ● | ● | ● |
0.5X objective, WD=110mm | ○ | ○ | ○ | ○ | ||
Microscope Body | Digital lens body set, continuous zoom objective 0.7X-5X. Built-in camera module, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse | ● | ||||
Digital lens body set, continuous zoom objective 0.7X-5X. Built-in camera module with measuring software, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse | ● | |||||
Digital lens body set, 12-inch high-definition LCD (-5 ° ~15 ° tilting), resolution 1920X1080, with HDMI interface. Continuous zoom objective 0.7X-5X. Built-in camera module, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse | ● | |||||
Digital lens body set, 12-inch high-definition LCD (-5 ° ~15 ° tilting), resolution 1920X1080, with HDMI interface. Continuous zoom objective 0.7X-5X. Built-in camera module with measuring software, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse | ● | |||||
Illumination | LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K | ● | ● | ● | ● | |
LED ring lamp with two circles, intensity separately adjustable, color temperature 5000-5500K | ○ | ○ | ○ | ○ | ||
Base | Large flat base, lifting range 225mm | ● | ● | ● | ● | |
Large flat base, lifting range 225mm. LED with adjustable brightness | ○ | ○ | ○ | ○ | ||
Other | 12V/3.3A switch power adapter with power switch connection cable | ● | ● | ● | ● | |
5m HDMI cable | ● | ● | ||||
0.2m HDMI cable | ● | ● | ||||
32 GB USB disk | ○ | ○ | ○ | ○ | ||
Wireless mouse | ○ | ○ | ○ | ○ | ||
Internal hexagonal Spanner M2 | ● | ● | ● | ● | ||
Internal hexagonal Spanner M3 | ● | ● | ● | ● | ||
Note: ● Standard Outfit, ○ Optional
Application
Plant Morphology
FPCB
Fiber
PCB
Accessories
1.Main objectives
There are different main objectives to expand zoom range, for observing the sample in full-scale or in detail.
2.LED ring lamp with two circle bulbs
There are separated switches for intensity control of inner and outer circle lamp. Outer circle as oblique illumination, is available to present more details. Inner circle as near coaxial light, improve the accuracy and reproducibility of the image.
Cellphone LCD: under inner light under outer circle light
HDD Disc: under outer circle light under inner circle light
