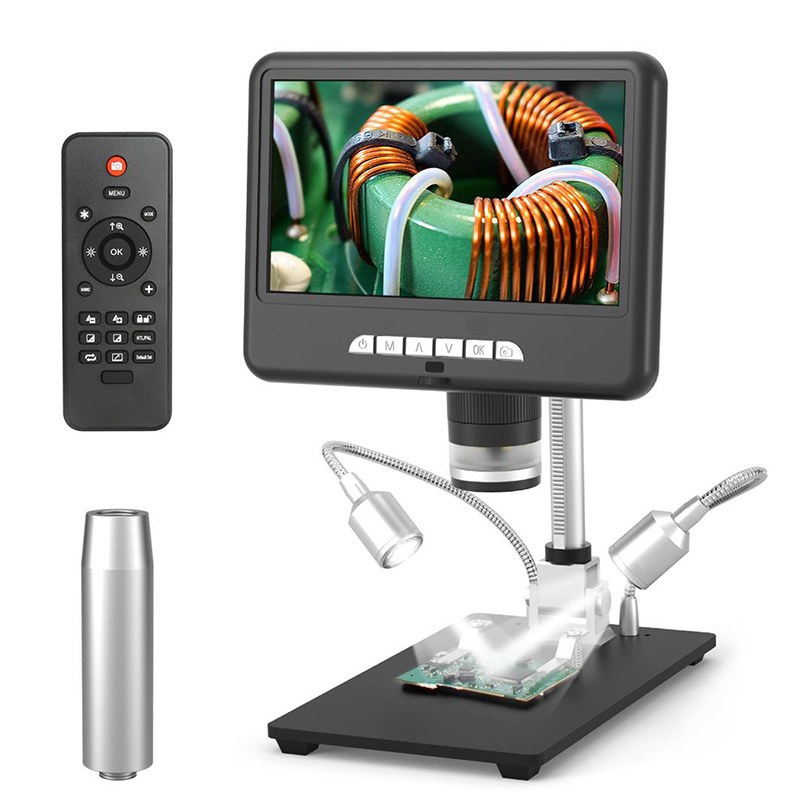

BestScope BLM1-207S LCD Digital Microscope
BLM1-207S is a new microscope, this microscope uses a 7-inch screen and a built-in 4 mega pixel HD imaging sensor, which can shoot high-definition videos and images, and the images can be saved to a Micro SD card. The microscope also has HDMI and USB output, which can be connected to an LCD monitor or computer respectively. When the microscope is connected to a computer via a USB cable, the software has a measurement function. The built-in…
Model: BLM1-207S | Image Sensor: 4 mega pixel HD sensor | Magnification: Up to 330X | Minimum focus distance: 2cm | Frame Rate: 120f/s max | Storage: SD memory card
الشروط والأحكام
30-day money-back guarantee
Shipping: 2-3 Business Days
BLM1-207S LCD Digital Microscope
BLM1-207S is a new microscope, this microscope uses a 7-inch screen and a built-in 4 mega pixel HD imaging sensor, which can shoot high-definition videos and images, and the images can be saved to a Micro SD card. The microscope also has HDMI and USB output, which can be connected to an LCD monitor or computer respectively. When the microscope is connected to a computer via a USB cable, the software has a measurement function. The built-in software of the microscope supports 10 languages, which can be used by customers in different countries and regions. This microscope is widely used in mobile phone repair, computer repair, clock repair, antique identification, semiconductor inspection, electronic product inspection, botany and insect research and other fields.
Key Details
| Model | BLM1-207S |
| Image Sensor | 4 mega pixel HD sensor |
| Magnification | Up to 330X |
| Minimum focus distance | 2cm |
| Frame Rate | 120f/s max |
| Storage | SD memory card |
Features
1.It comes with a 7-inch LCD screen, and the display effect is good.
2.The angle of the display screen is adjustable, which is convenient for users to observe from multiple angles.
3.The metal bracket can be adjusted forward and backward, bringing 3D visual effect and larger operation space.
4.Metallic black base plate with double clips to fix the specimens.
5.The brightness of the LED light is adjustable, and the image is clear.
6.Support memory card recording and photography.
7.Support HDMI/USB output.
8.Support measurement software.
Specification
Item | Specification |
Image Sensor | 4 mega pixel HD sensor |
Video Resolution | Ultra HD 2880×2160 24 fps; Full HD 1920×1080 60 fps/30 fps; HD 1280×720 120 fps/60 fps/30 fps; |
Video Format | MP4 |
Magnification | Up to 330X (3x digital magnification output to 27-inch HDMI display) |
Photo Resolution | Up to 24M (5600×4200) |
Photo Format | JPG |
Focus Range | The minimum focusing distance is 2cm |
Frame Rate | 120f/s max. (600 Lus brightness > HDP120) |
Storage | Micro SD memory card, up to 64G (card not included as standard) |
Video Output | HDMI/USB output |
PC Support | Support Windows XP/7/8/10 system, with PC measurement function (software bonus) |
Power Supply | DC 5V, 2A |
Light Source | 8 LEDs around the bottom of the lens, 2 flexible LEDs on the base of the stand |
Bracket Size | 20×12×19cm |
Screen Resolution | 1024×600 |
Screen Size | 7 inches |
Certificate | CE/FCC/ROHS/HDMI |
Language | 10 kinds, Simplified Chinese/ Traditional Chinese/English/Japanese/French/German/Italian/Portuguese /Spanish/Russian |
Standard Contents | 7 inch microscope× 1, metal bracket×1, 3-in-1 power cable×1, HDMI cable×1, USB cable×1, remote control× 1, UV mirror×1, power adapter ×1, Metal Clip x 2, 10cm Extension Column×1, Instruction Manual×1 |
Packaging | 32×22×10cm/ 1.65 kg |
Warranty | 3 years |
Application
1. Repair of electronic products such as mobile phones/computers.
2.Antique appraisal.
3.Printed materials inspection.
4.Textiles inspection.
5.Miniature carving / jewelry.
6.Factory production line.
7.Clock repair.
8.Botany & Entomology.
9.Coin collection.
Sample Image
المواصفات BestScope BLM1-207S LCD Digital Microscope
| Manufacturer | BestScope |
